4046 Steam Plant - 2" "Econo" Vertical Boiler - fit your own engine.

4046 Steam Plant - 2" "Econo" Vertical Boiler - fit your own engine.

Regular price $629.00 CAD
Regular price Sale price $629.00 CAD
Sale Sold out
Tax included. Shipping calculated at checkout.

A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.

Custom Steam Plants – fit your own engine.
These are steam plants designed to allow a client to select a fully assembled plant minus the engine. To assist with selection we have noted the MSM engine we would recommend for this plant if we were asked to:  Avon Only.

Vertical Copper "Econo" Boiler Steam Plant  P/N 4046

The boiler is a variant of the standard 2" vertical boiler that performs as well, but has a lower cost of production and a shorter running time.

Steam Plant comes with:
High performance copper boiler P/N 4056
Exhaust oil trap P/N 4062
Refillable gas tank with pressure test certificate. P/N 4271
Gas filler adapter P/N 4358
Brass mounting tray P/N 2736
Gas & steam pipe work
Possible steam connections to engine fittings if discussed at time of ordering
Syringe for emptying oil trap

Not Supplied:
Engine

Steam Plant Specifications:
Weight dry                                   1.46 kg

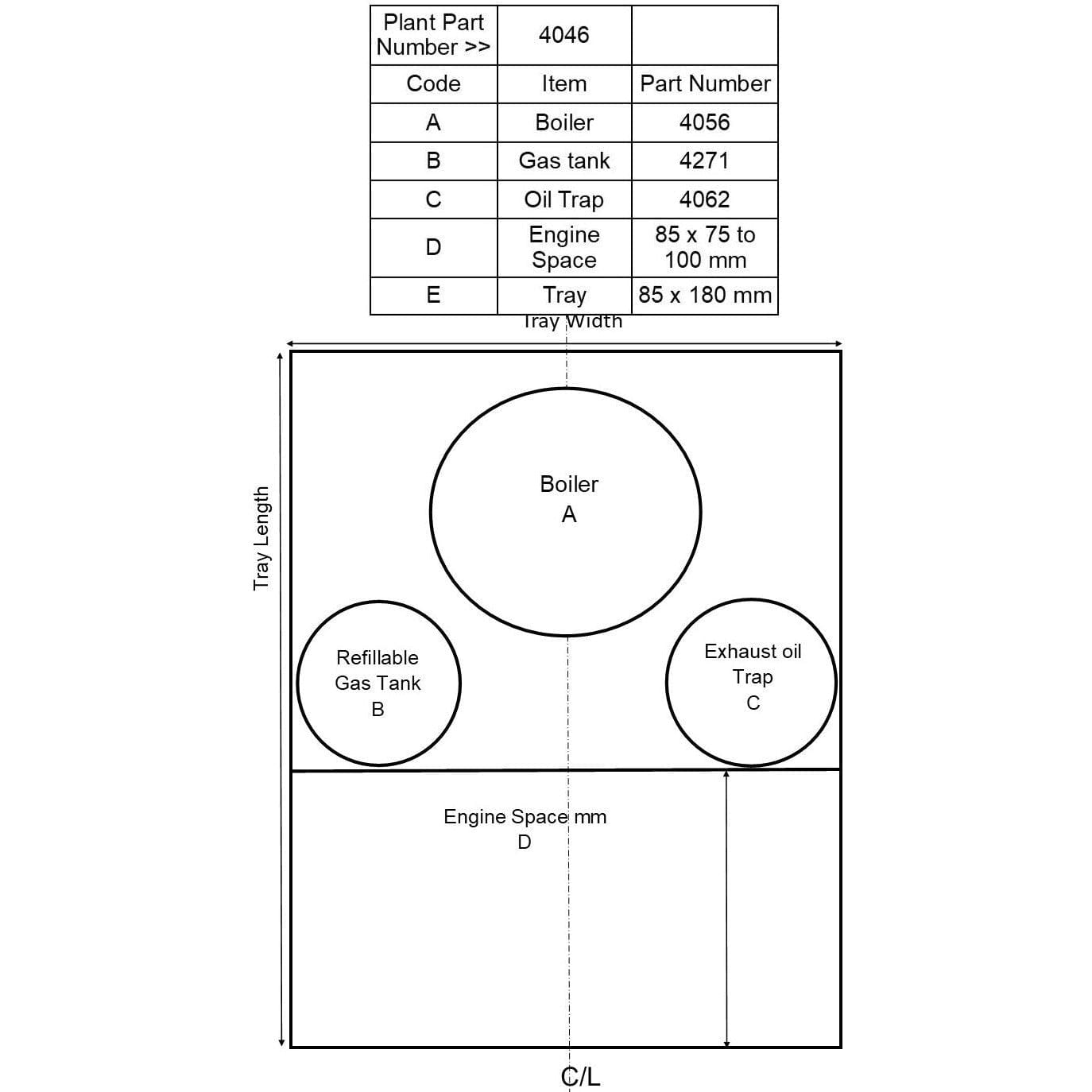

Tray Size                              85 x 190 mm Engine space 85 x 75 mm to 100 mm
Height to top of boiler cone            140 mm
Height to top of flue                      200 mm

Boiler specifications:
Diameter                               2” 50.8 mm
Boiler water capacity                      75 ml
Working pressure                     25 psi 1.7 Bar
Test pressure                           80 psi  5.32 bar
Running time per fill approx.           10 min

Complies with the following design, construction and testing requirements of:
- Australian Standard AS 4343 Level E
Australian Miniature Boiler Safety Committee, (AMBSC) code part 3 Issue 1.0 - 2006 Sub-Miniature Boilers and AMBSC code part I . Issue 7 - 2001 - UK Boiler Test Code 2018 – Volume 2

                   Copper Boiler includes:
                                    Pressure gauge
                                    Safety valve
                                    Water sight glass
                                    Gas fired cast ceramic burner
                                    Pressure test certificate
                                    Boiler specifications meets AS 4343 hazard level E
                                    & AMBSC Code Part 3 issue 2 – 2017, Sub-Miniature                                           Boilers.
