Miniature Steam Pty Ltd

4087 Steam Plant 3" Horizontal Clyde Horizontal Mount

4087 Steam Plant 3" Horizontal Clyde Horizontal Mount

Regular price $1,400.00 CAD
Regular price Sale price $1,400.00 CAD
Sale Sold out
Tax included. Shipping calculated at checkout.

A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.

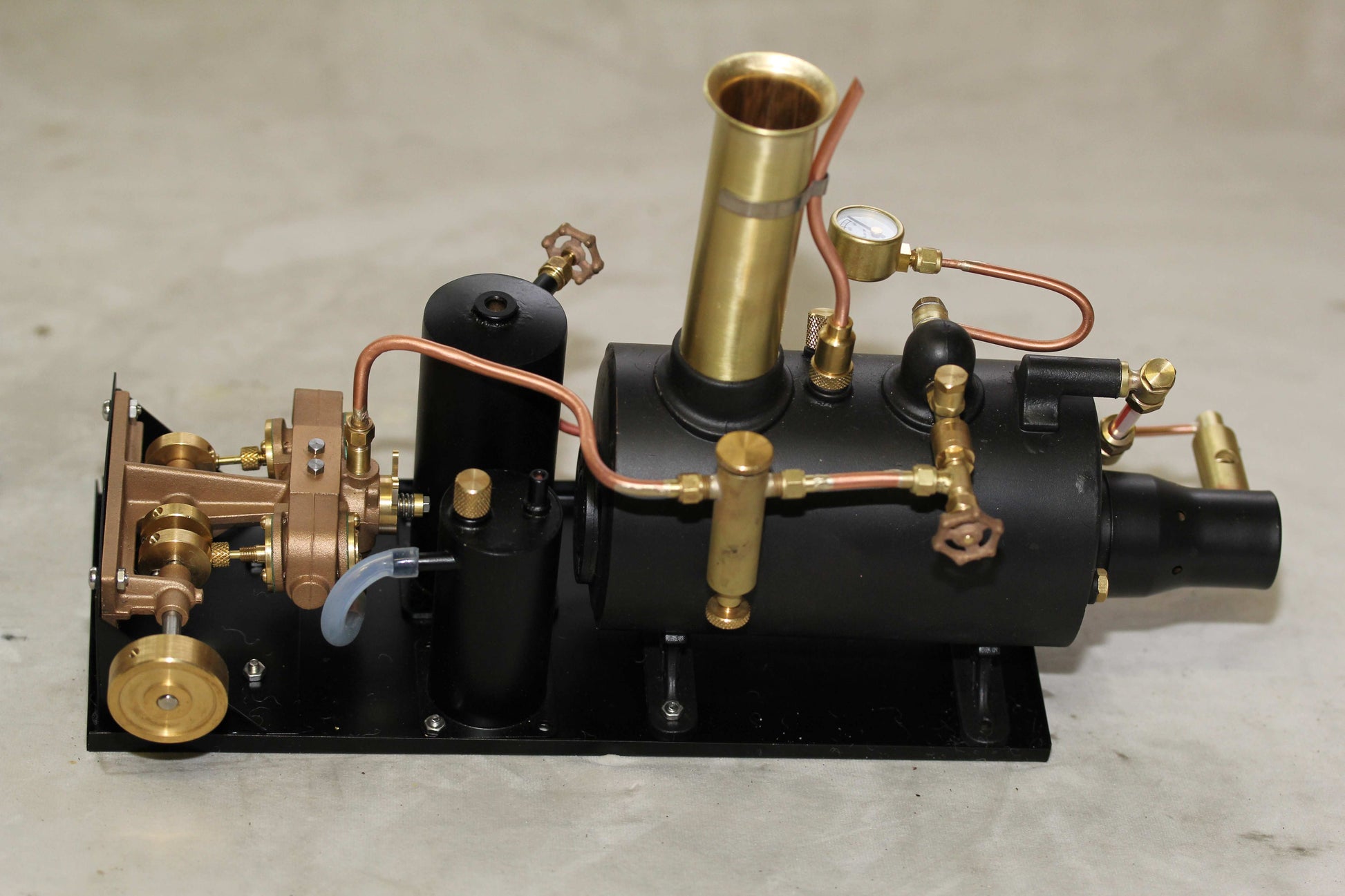

A Paddle boat Steam Plant with 3" Horizontal Boiler and Clyde on its side

Components:
Supplied:
Mounting Tray
3” Horizontal Copper Boiler P/N 4059
3” Burner Kit P/N 4016
Clyde Twin Cylinder Oscillating Engine P/N 5009  Click this link for: Oscillator Reversing/throttle Valve Settings
1-1/2“ Vertical Refillable Gas Tank P/N 4272
1-1/4” Exhaust Oil Separator P/N 4062A
Refillable Gas Tank Adaptor- Long (95 mm) P/N 4025
Screws/Bolts for Securing Components to Mounting Tray
Connecting piping for all components.

Not supplied:
Whistle with fittings: Please order it as a separate item The cost of installation is included in the price

Dimensions: ????
Mounting tray 260 x 100 mm (10.24" x 3.94”)
Overall length 300 mm (11.81”)
Overall Width 100 mm (3.94”)
Height to top of pressure gauge 150 mm (6”)
Height to top of stack 240 mm (9.5”)
Height to top of engine 85 mm ( 3.35”)
Output shaft diameter 5 mm (0.2”)
Weight 1960 gm
