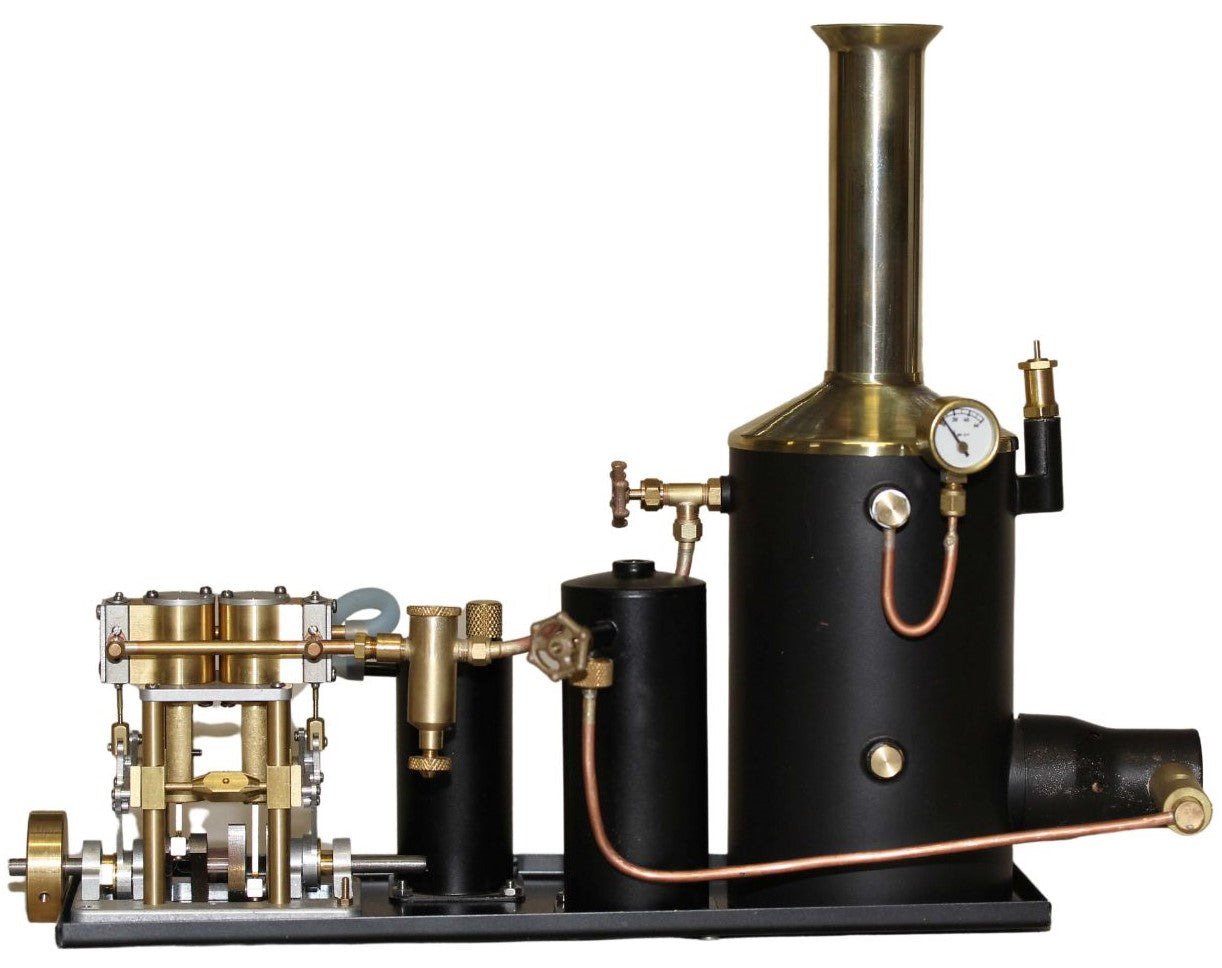

4044T 3" Vertical Boiler Steam Plant - Assembled - fit your own TVR1 engine.

4044T 3" Vertical Boiler Steam Plant - Assembled - fit your own TVR1 engine.

Regular price $999.00 CAD
Regular price Sale price $999.00 CAD
Sale Sold out
Tax included. Shipping calculated at checkout.

A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.

Complete plant ready for fitting of standard TVR1 Slide Valve engine supplied by customer.

Components:
Supplied:
Mounting Tray P/N 2786
3” Vertical Copper Boiler P/N 4059
3” Burner Kit P/N 4016
1-1/2 “ Vertical Refillable Gas Tank P/N 4272
1-1/4” Exhaust Oil Separator P/N 4062
Refillable Gas Tank Adaptor- Long (95 mm) P/N 4357
Screws/Bolts for Securing Components to Mounting Tray
Connecting piping for all components.

Not supplied:
Engine:
Whistle with fittings: Please add to your order separately - price includes fitting
Mounting Screws for fixing tray into the boat

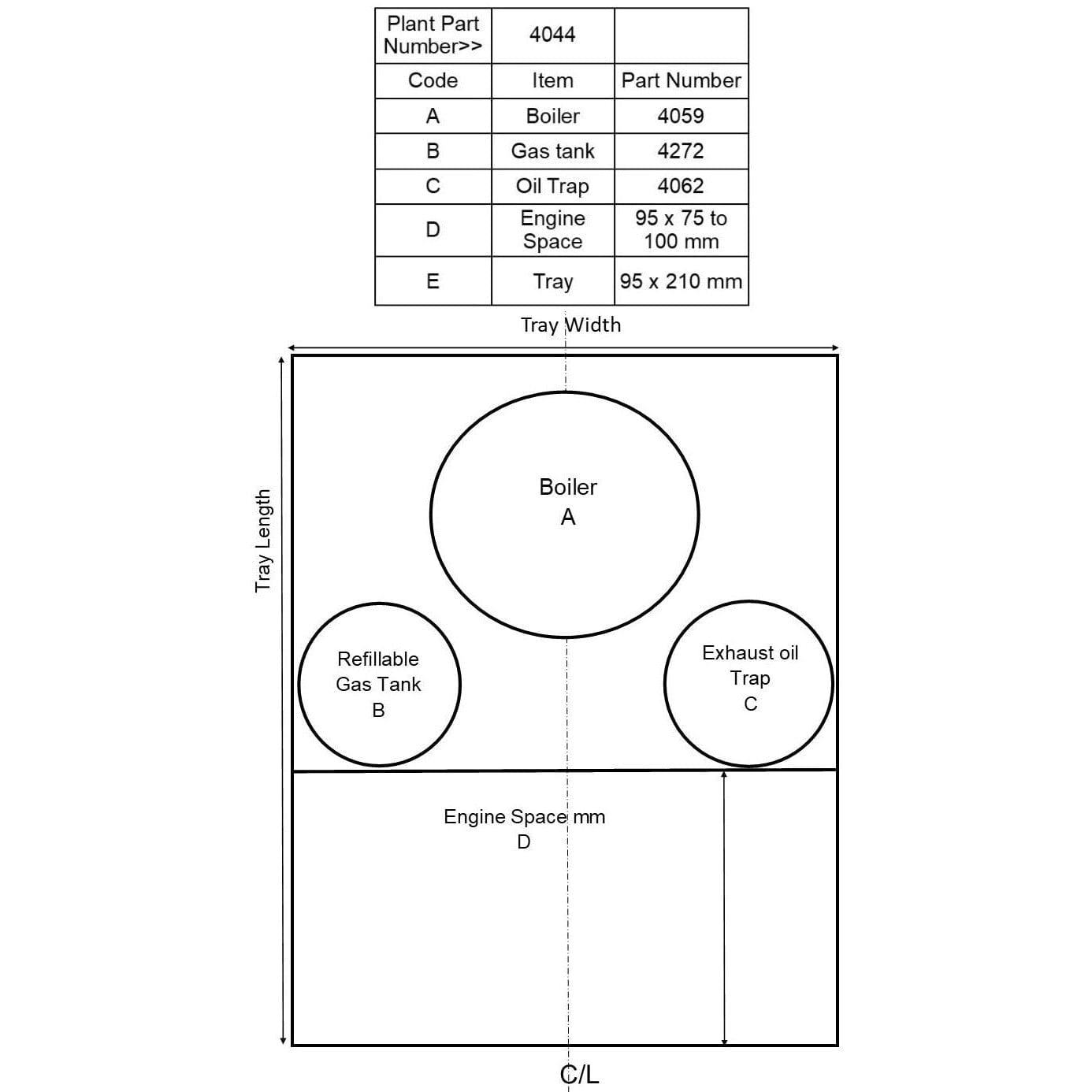

Dimensions:
Mounting tray 95 x 210 mm with 95 x 75 to 100 mm engine space.
Height to top of pressure gauge 150 mm (6”)
Height to top of stack 240 mm (9.5”)
Height to top of engine 85 mm ( 3.35”)
Weight 1960 gm
