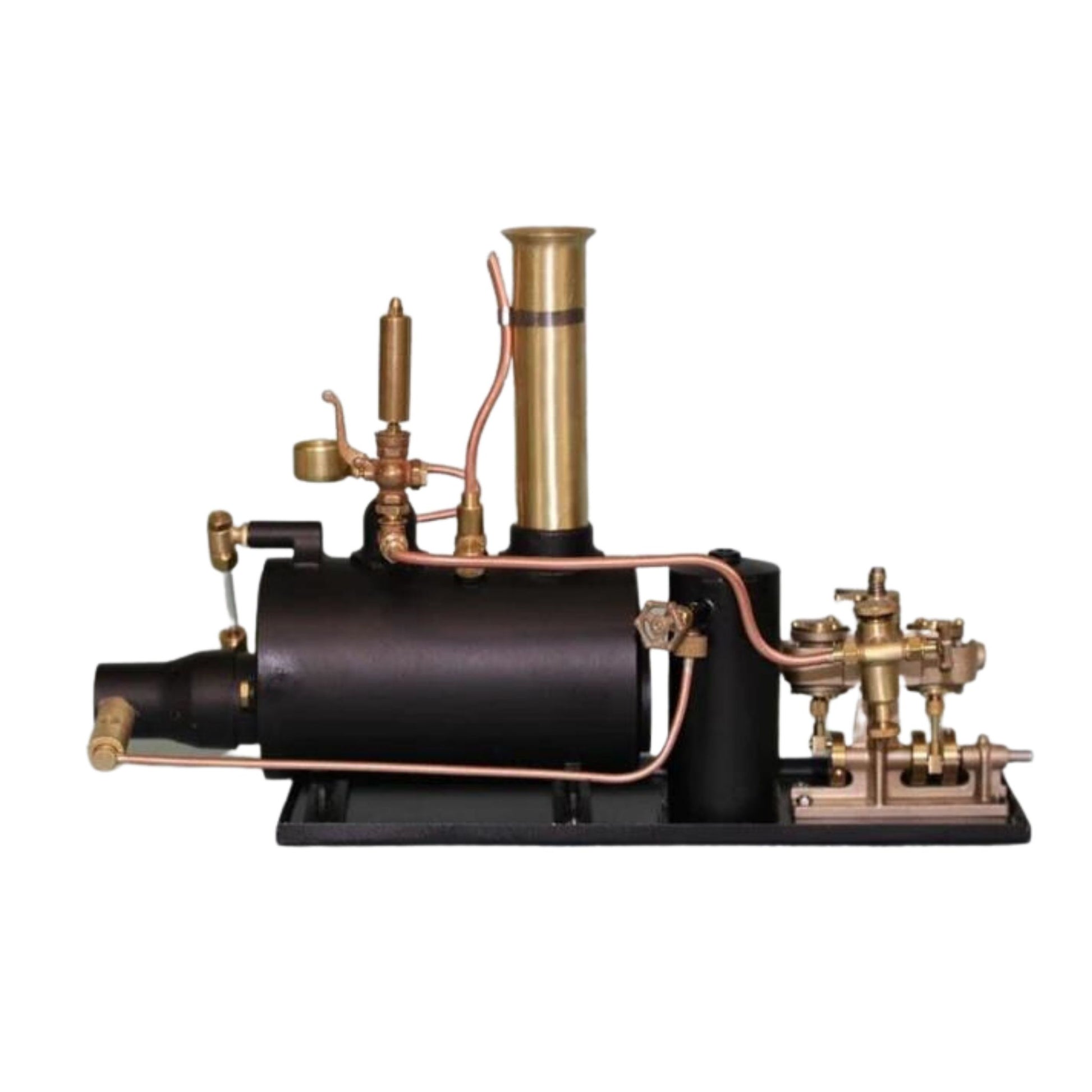

4050W 3" Horizontal Boiler/Clyde Steam Plant- Assembled - with Whistle
4050W 3" Horizontal Boiler/Clyde Steam Plant- Assembled - with Whistle
A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.
Couldn't load pickup availability
Components:
Supplied:
Mounting Tray P/N 2842
3” Horizontal Copper Boiler P/N 4059
3” Burner Kit P/N 4016
Clyde Twin Cylinder Oscillating Engine P/N 5009 Click this link for: Oscillator Reversing/throttle Valve Settings
1-1/2“ Vertical Refillable Gas Tank P/N 4272
1-1/4” Exhaust Oil Separator P/N 4062A
Refillable Gas Tank Adaptor- Long (95 mm) P/N 4025
Whistle with fittings P/N 5256F
Screws/Bolts for Securing Components to Mounting Tray
Connecting piping for all components.
Wood lagging, brass binding strips and instructions for lagging the boiler.
Not supplied:
Mounting Screws for fixing tray into the boat
Engine output shaft connections
Dimensions:
Mounting tray 200 x 90 mm (7.87” x 3.54”)
Overall length 255 mm (10”)
Overall Width 100 mm (3.95”)
Height to top of pressure gauge 150 mm (6”)
Height to top of stack 240 mm (9.5”)
Height to top of engine 85 mm ( 3.35”)
Output shaft diameter 5 mm (0.2”)
Weight 1960 gm
