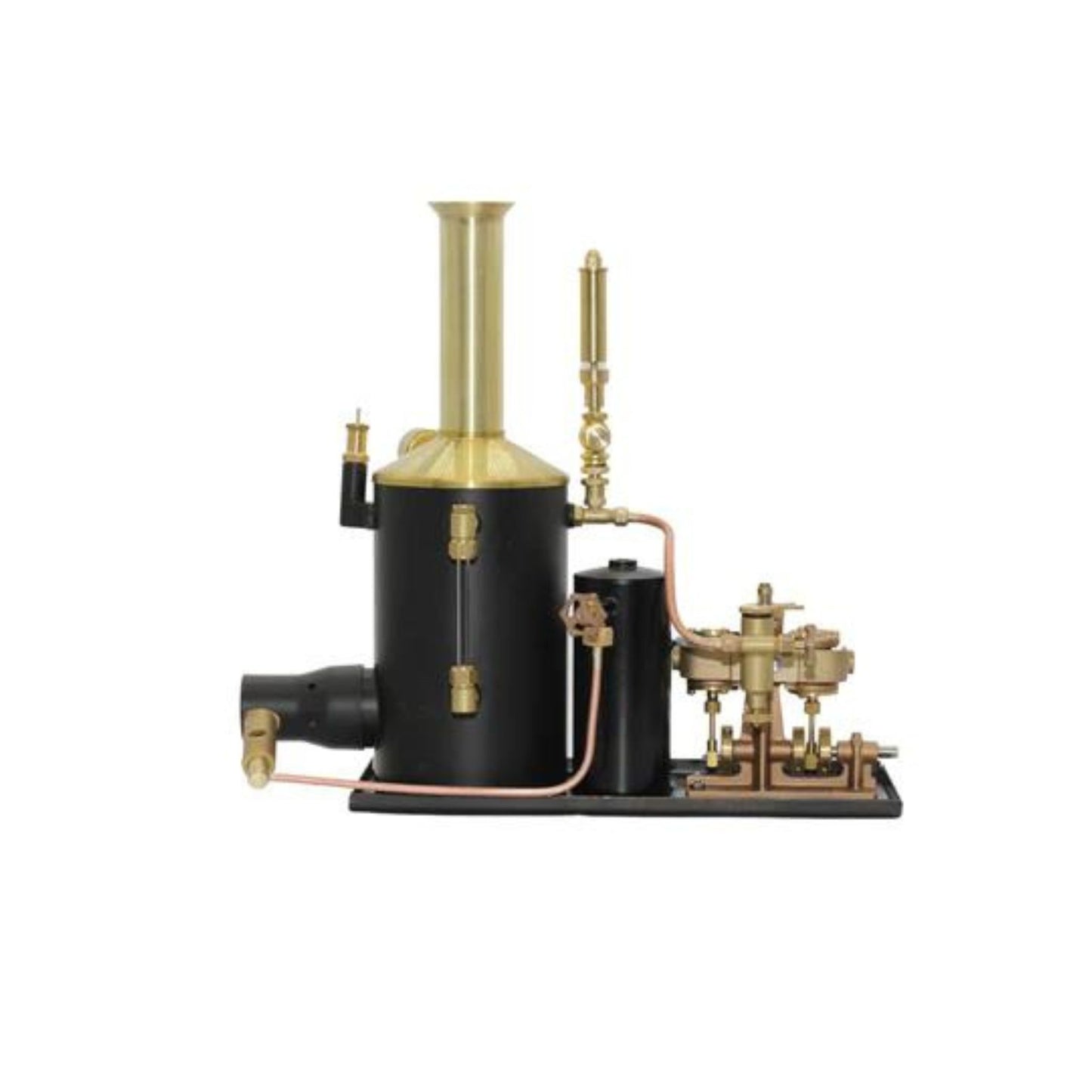

4049W 3" Vertical/Clyde Steam Plant - Assembled - with whistle

4049W 3" Vertical/Clyde Steam Plant - Assembled - with whistle

Regular price $1,858.00 NZD
Regular price Sale price $1,858.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.

Components:
Supplied:
Mounting Tray P/N 2786
3” Vertical Copper Boiler P/N 4059
3” Burner Kit P/N 4016
Clyde Twin Cylinder Engine P/N 5009  Click this link for: Oscillator Reversing/throttle Valve Settings
1-1/2 “ Vertical Refillable Gas Tank P/N 4272
1-1/4” Exhaust Oil Separator P/N 4062A
Whistle with fittings P/N 5256F
Refillable Gas Tank Adaptor- Long (95 mm) P/N 4357
Screws/Bolts for Securing Components to Mounting Tray
Connecting piping for all components.
Wood lagging, brass binding strips and instructions for lagging the boiler.

Not supplied:

Mounting Screws for fixing tray into the boat
Engine output shaft connections

Dimensions:
Mounting tray 95 x 210 mm
Height to top of pressure gauge 150 mm (6”)
Height to top of stack 240 mm (9.5”)
Height to top of engine 85 mm ( 3.35”)
Weight 1960 gm
