4060 - 3 inch Horizontal Marine Boiler

Regular price $677.00

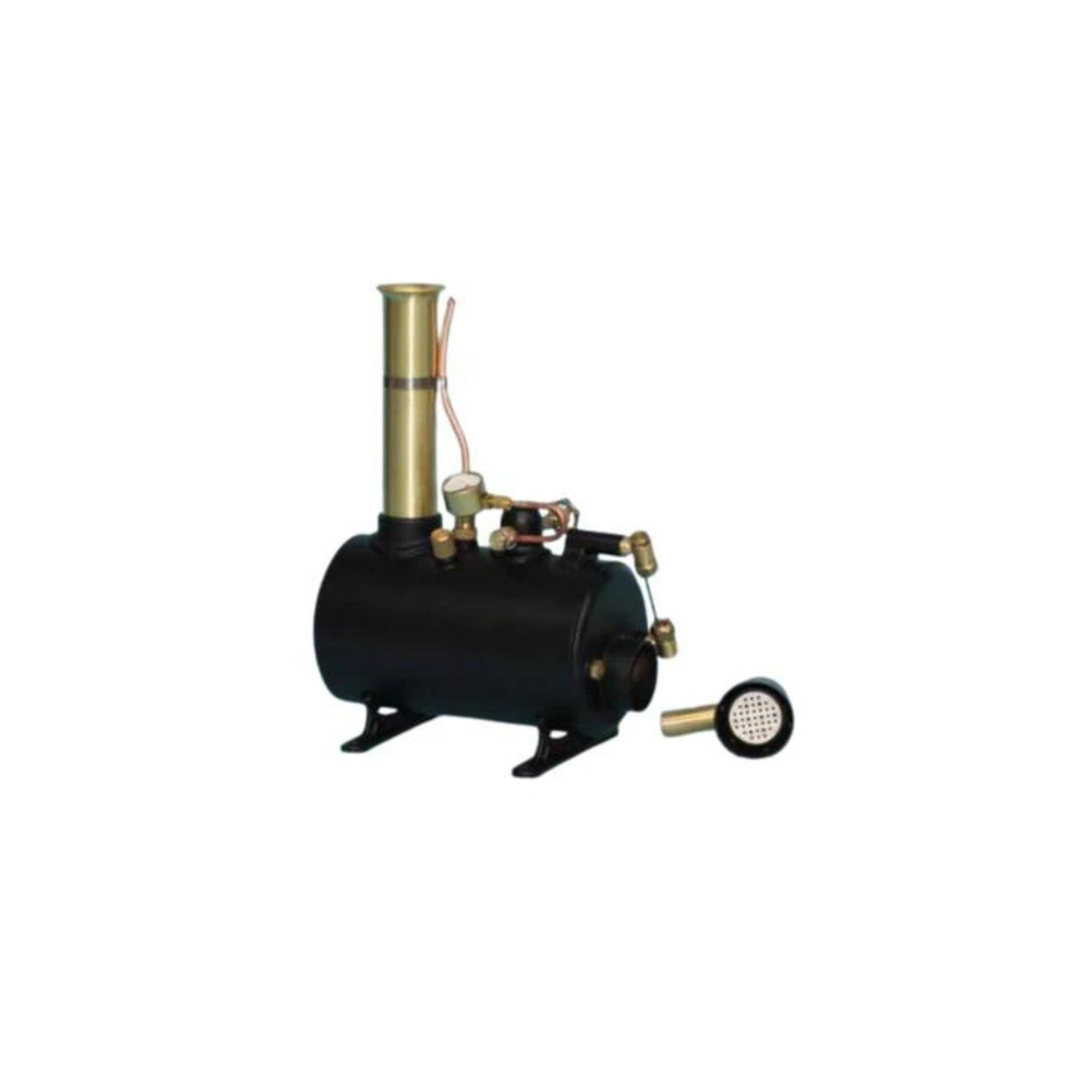

3" Horizontal Boiler: P/N 4060

- including Ceramic Burner, Safety Valve, Wood Lagging Kit, Pressure Gauge & Boiler Test Certificate

Overall Dimensions:

Diameter 76.2 mm (3 inch)
Width including stand 90.0 mm (3.5 inch)
Height top of steam pressure gauge 125.0 mm (4.9 inch)
Height top of steam flue 220.0 mm (8.7 inch)
Length without burner 150.0 mm (5.9 inch)
Length with burner attached 185.0 mm (7.3 inch)
Weight dry 1.2 kg (2.6 lbs)
Working pressure 40psi 2.76 bar,
Test pressure 120psi, 8.27 bar

Water fill (75% of space) 260 ml  approx.

 Design & Construction Standards:

“Miniature Steam”, boilers are built to the highest quality standards.

They comply. where appropriate, with the following design, construction and testing requirements of:
- Australian Standard AS 4343 Level E
Australian Miniature Boiler Safety Committee, (AMBSC) code part 3 Issue 1.0 - 2006 Sub-Miniature Boilers and AMBSC code part I . Issue 7 - 2001
- UK Boiler Test Code 2018 – Volume 2

Every aspect of the boilers has been carefully designed and rigorously tested to meet the highest possible steam generation performance. Each has been designed and manufactured by “Miniature Steam, including the cast ceramic burner insert
