4058 - 2 inch Horizontal Marine Boiler

4058 - 2 inch Horizontal Marine Boiler

Regular price $485.00 AUD
Regular price Sale price $485.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

A 10% GST is included in these pages for Australian Customers. Prices for International Visitors are not taxed when accessing their own currency.

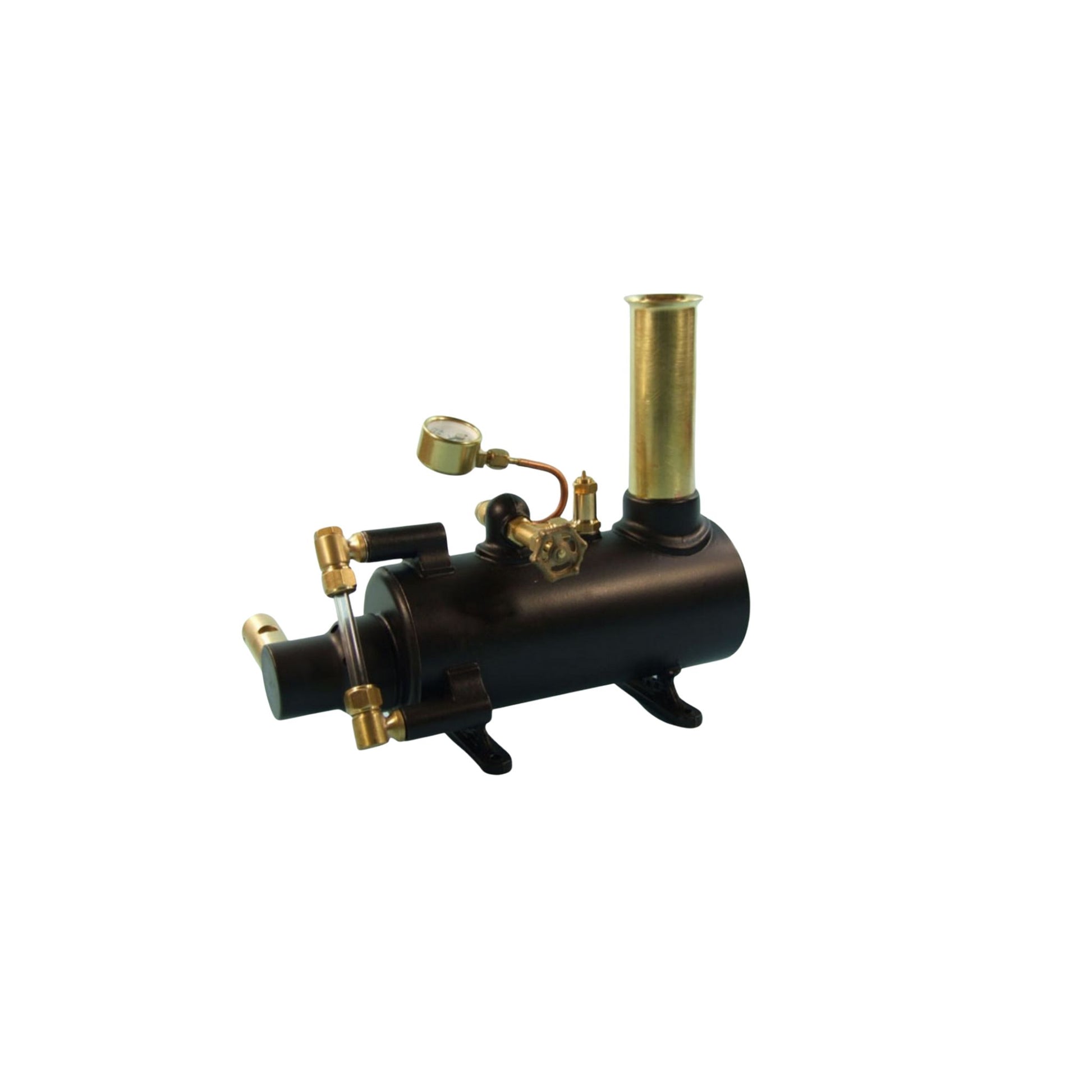

 2" Horizontal Boiler - P/N 4058

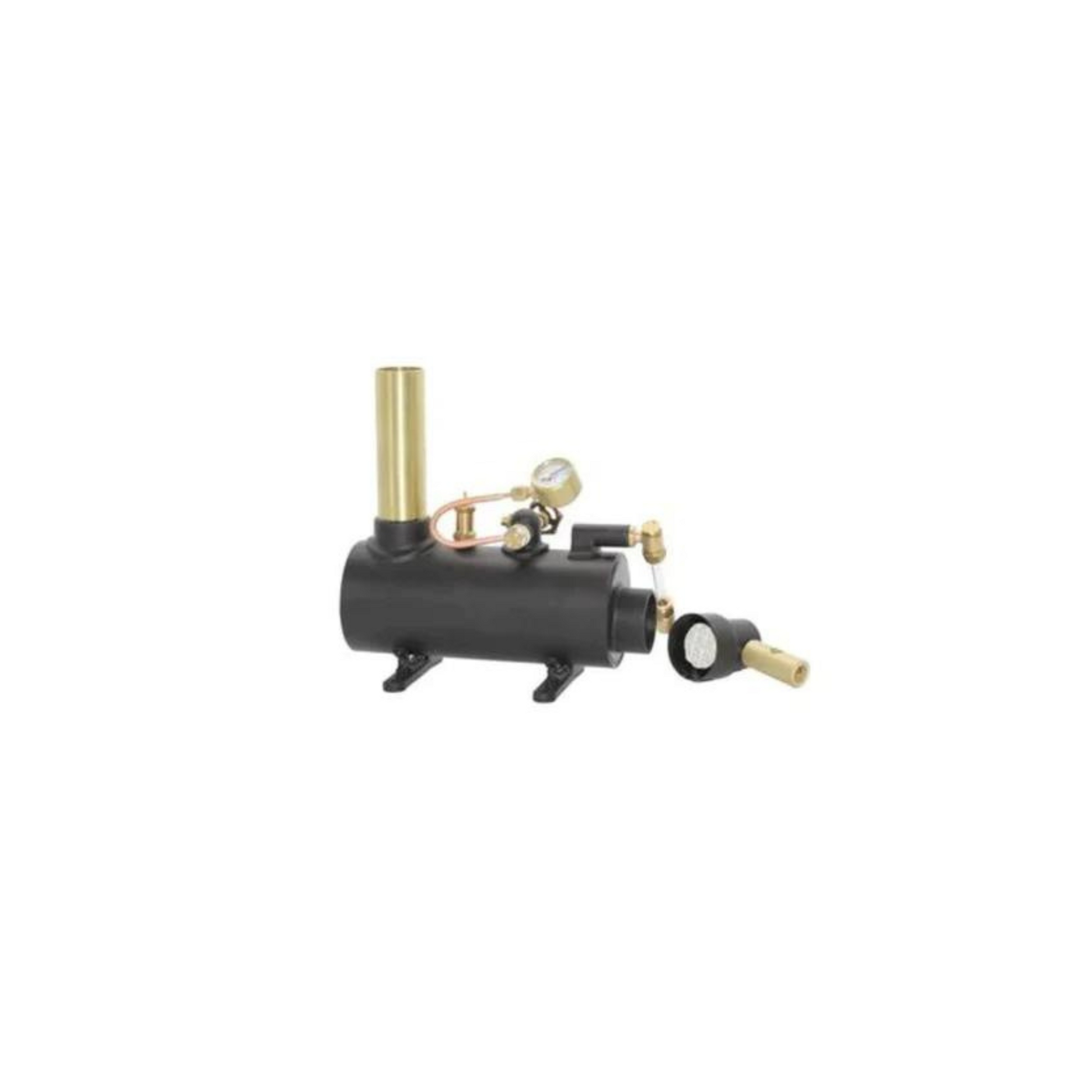

Including Ceramic Burner assembly, Safety Valve, Pressure Gauge, Sight Glass, Steam Stop Valve ( 5/32” copper pipe) & Boiler Test Certificate.

Overall Dimensions:

Total Height 137 mm (5.39")

Chimney height above boiler barrel 75 mm (2.95")

Height to top of steam dome 78 mm (3.07")

Total Width  65 mm (2.56”)

Width of cast feet 60 mm (2.36”)

Length including burner 155 mm (6.10”)

Length not including burner 140 mm (5.51”)

Weight empty including burner 680g (24 oz)

Running time/fill @ 25 psi, 20 min (approx.)

Working pressure 25psi, (1.6bar)

Test Pressure 80 psi (5.52 bar)

Water fill (75% of space) 100 ml

Design & Construction Standards:

“Miniature Steam”, boilers are built to the highest quality standards.

They comply. where appropriate, with the following design, construction and testing requirements of:
- Australian Standard AS 4343 Level E
Australian Miniature Boiler Safety Committee, (AMBSC) code part 3 Issue 1.0 - 2006 Sub-Miniature Boilers and AMBSC code part I . Issue 7 - 2001
- UK Boiler Test Code 2018 – Volume 2

Every aspect of the boilers has been carefully designed and rigorously tested to meet the highest possible steam generation performance. Each has been designed and manufactured by “Miniature Steam, including the cast ceramic burner insert
