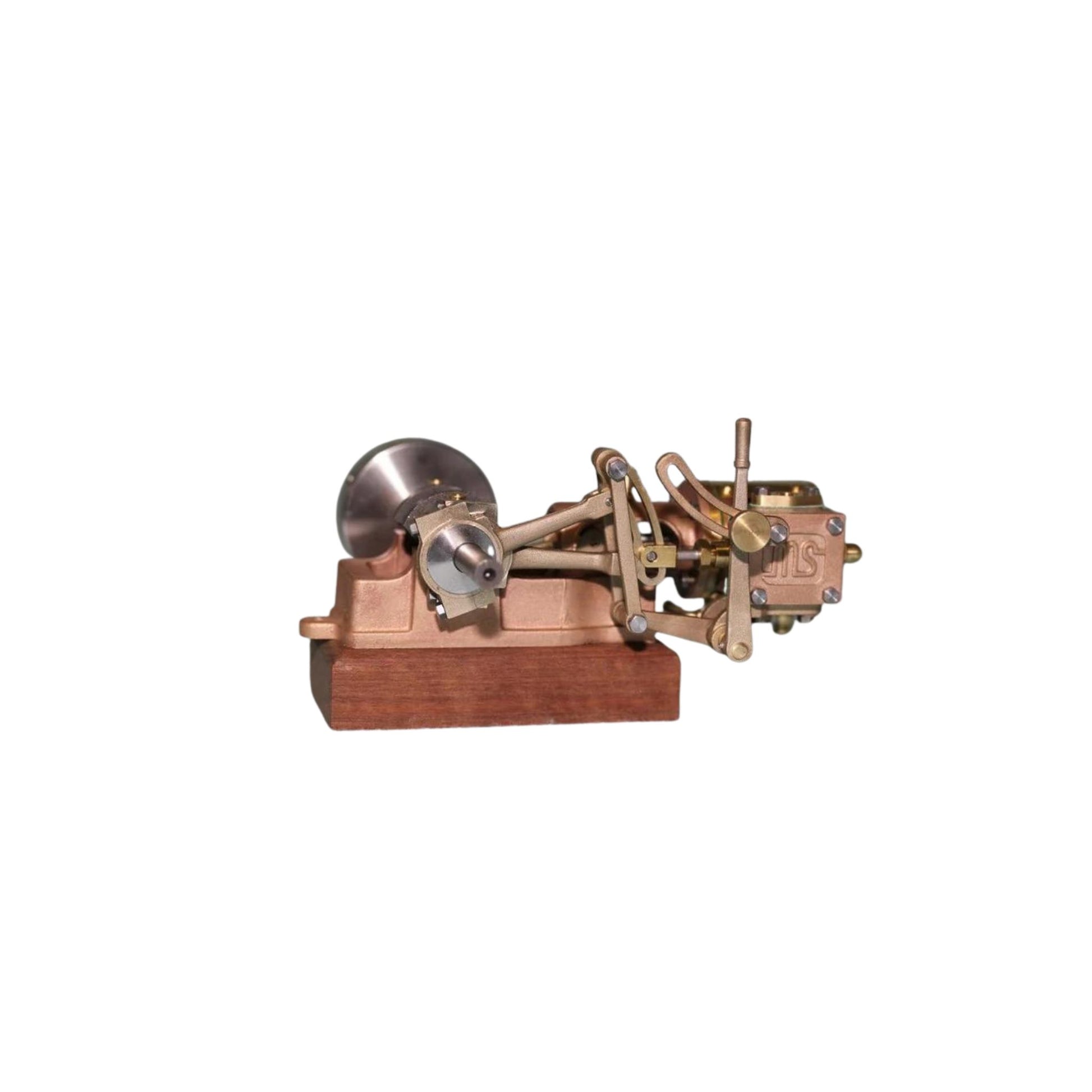

This single cylinder horizontal steam engine with the Stephenson's reverse linkage is typical of hundreds of steam engines that powered many of the smaller paddle steamboats used on the inland river systems of Victoria and New South Wales. The model derives its name from the paddle steamer Pevensey that is still in operation today on the Murray River at Echuca in northern Victoria.
Without the Stephenson's reverse linkage it is a beautiful little horizontal mill engine typical of the many hundreds of steam engines used in factories and gold mines during the 19th and early 20th century. The model can be used to power a small pump, dynamo or any other similar devices. The Pevensey casting kit is an ideal project for the novice or more experienced model engineer and can be machined on a small (3 ½ inch) hobby lathe
When choosing an engine for your project please note that this engine is not necessarily self starting. If this is a requirement a twin cylinder engine should be used.
3/4" Bore, 3/4" Stroke, 1-7/8" dia. Low Profile Marine Flywheel
Weight 980 gms.
Overall Dimensions Overall view of critical dimensions.
