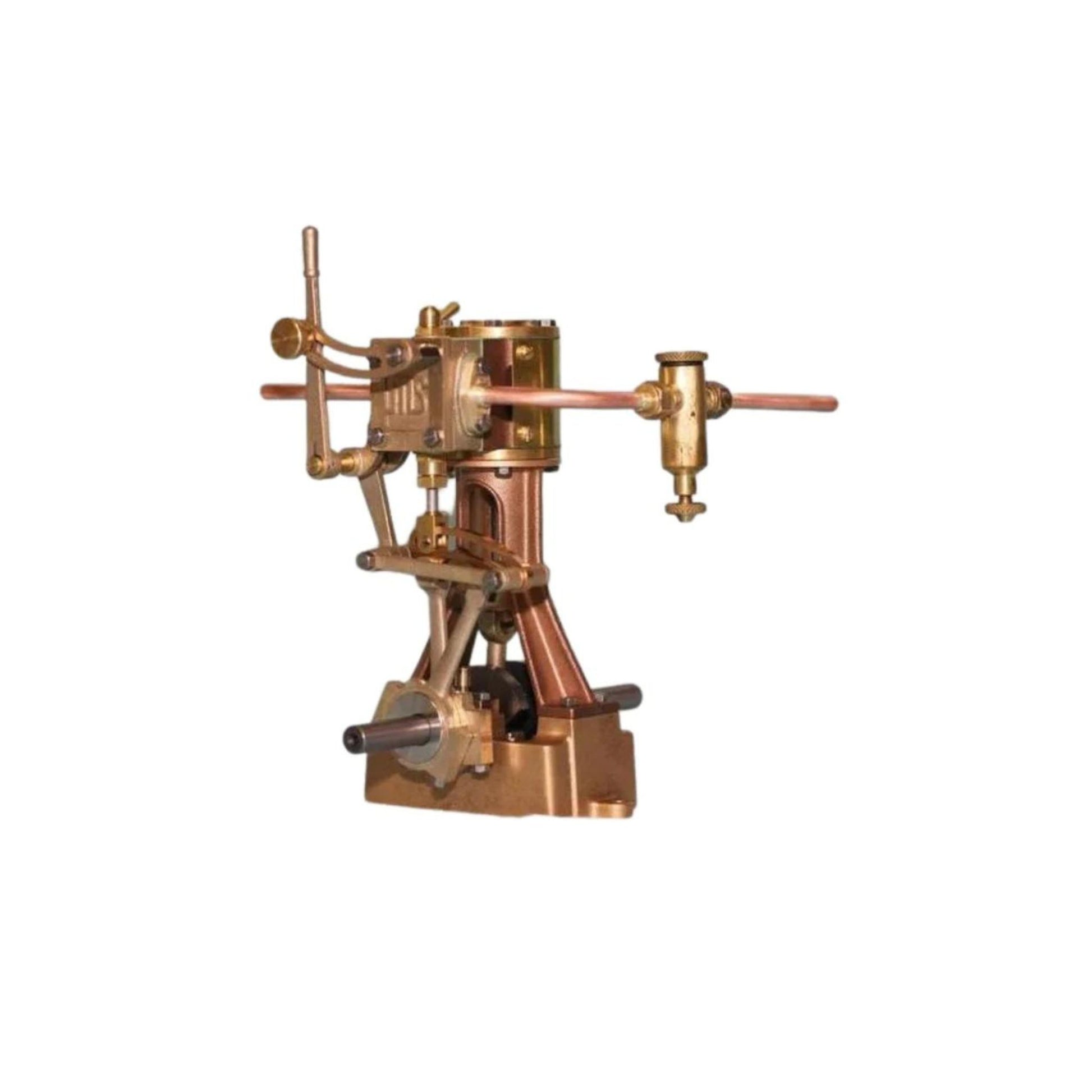

5003M Echuca Single Cylinder Vertical Steam Engine - Reversing - Marine Flywheel
The Echuca is typical of many vertical stationary single cylinder steam engines used in the 19th and early 20th century in Australia. Engines of this type were use in the gold fields, saw mills and small factories.
By adding Stephenson's reversing linkage the Echuca becomes a marine steam engine capable of powering model steamboats up to 1.5 (3'6") long on a boiler pressure of about 40 psi. When choosing an engine for your project please note that this engine is not necessarily self starting. If this is a requirement a twin cylinder engine should be used.
The Echuca casting set is an ideal project for the novice or more experienced model engineer. It can be machined on a small (3 ½ inch) hobby lathe.
3/4" Bore x 3/4" Stroke, and a 1-7/8” flywheel diameter.
Weight 1000 gms
Overall Dimensions Overall view of critical dimensions. Note that this model enables the engine to be mounted on a flat surface.
