5000S Mildura Twin Cylinder Non-reversing Steam Engine - Spoked F/W

Click here: For an Overview of MSM Engines

MILDURA

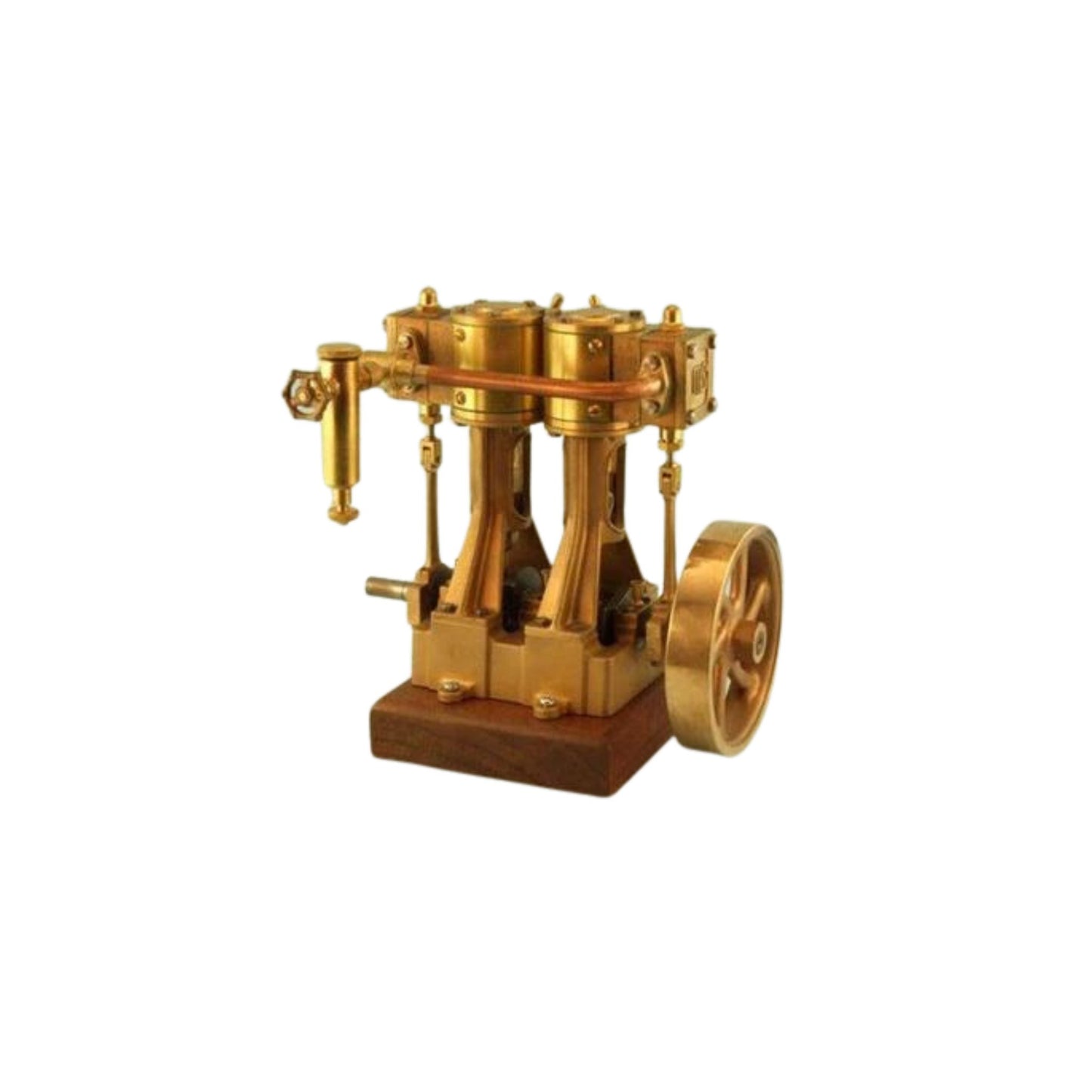

A twin cylinder non reversing engine as pictured.

A low profile marine flywheel is optional at a lower price.

The Mildura is the most popular in our range with most modellers opting for the Stephenson's Reversing Linkage.  The crank throws are at 90º giving the engine self starting characteristics at any position of the crankshaft. By adding Stephenson's reversing linkage the Mildura becomes a marine steam engine capable of powering model steamboats up to seven feet long on a boiler pressure of up to about 80 psi.

Specifications:

19 mm bore x 19 mm stroke
50 mm dia x 16 mm wide low profile marine flywheel
Maximum length—approx 163 mm
Width without displacement lubricator approx 95 mm
Width including displacement lubricator approx 130 mm
Height with marine flywheel—approx 135 mm
Optional 80mm dia.x 15mm spoked flywheel (higher price)
Weight - Marine RC Model—1990 gms
A displacement lubricator is included in each assembled engine
Suitable for boats up to 2.1 M (7') long
Matched to "Miniature Steam" 4” Boiler operating at 45psi

Mildura Engine Origins:
The Mildura steam engine is typical of many steam engines used to pump water from the inland river systems of Victoria and New South Wales (NSW) for irrigation purposes during the 19^th and early 20^th century. This was started by George Chaffey who left Los Angeles in 1886 to set up Australia's first large irrigation project at Mildura.

Mildura Engine Dimensions

Mildura Engine Facts Sheet

NOTE: The mounting block is not included.
